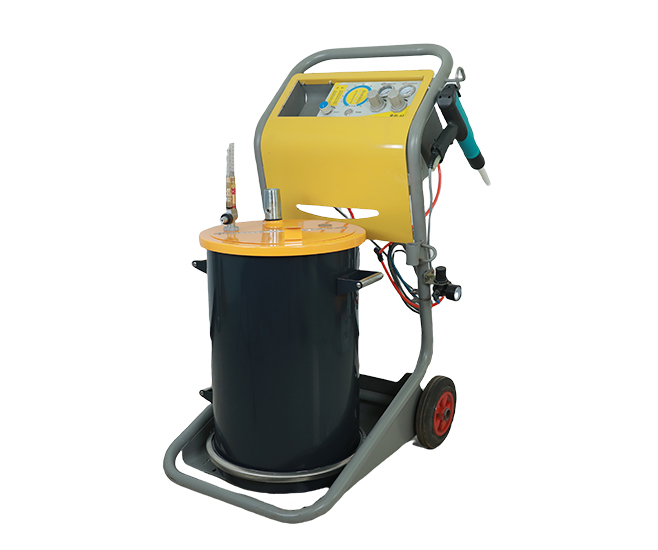

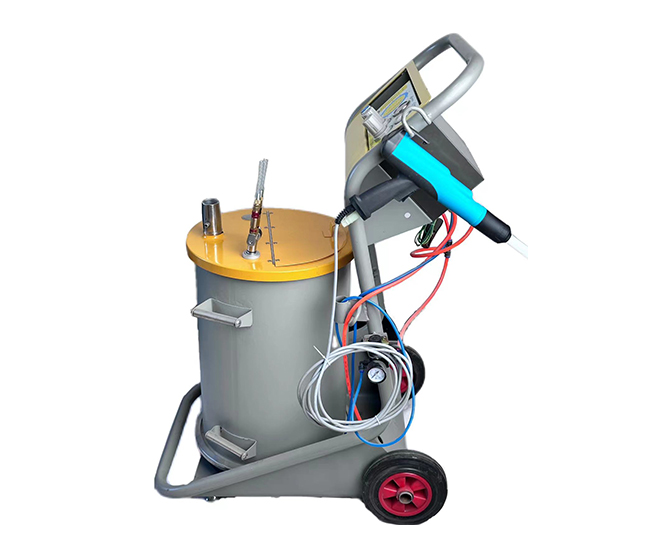

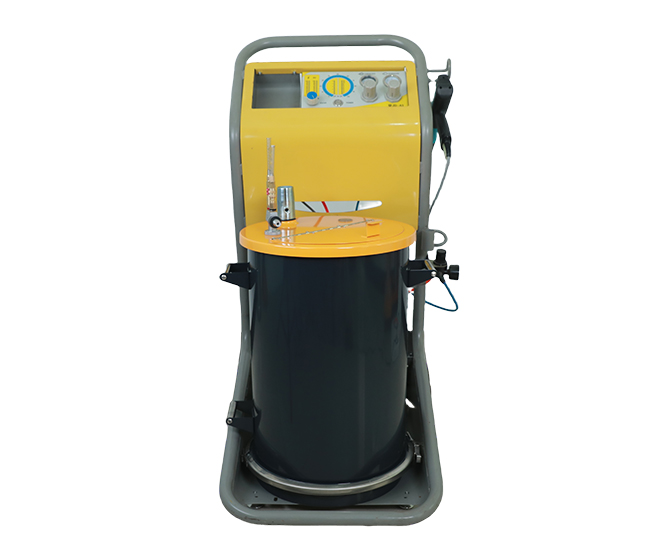

HXC-JD-A3 Electrostatic coating machine

Electrostatic coating machine

Characteristic

1, detachable voltage doubler close to the nozzle, low voltage loss.

2, novel and unique two central gas, constantly clean the central electrode, excellent discharge effect, high powder rate.

3, voltage, current LED display (digital display), easy to interpret.

4, intuitive barometer display, the operation is very convenient.

5, especially light and reasonable gun structure (gun weight 570), compact and beautiful, very contemporary.

6, a variety of nozzles to choose from, the size of the horn nozzle is the ideal choice for large plane workpiece powder.

7, stainless steel powder barrel luxury steam pie, clean and convenient.

Download specification

Parameter

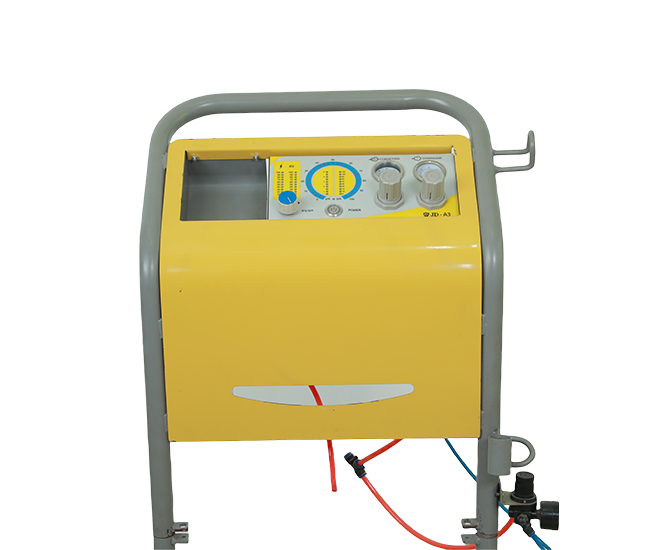

Circuit (control unit)
Input voltage
220V
Frequency
50HZ
Input power
30W
Output curren
Max0.9A
Valve-controlled voltage
DC24V
Protective level dynamic
IP54
Gas path
Input pressure
6~8KG
Maximum moisture content in compressed air
1.3g/m3
Maximum oil content in compressed air
0.1ppm
Compressed air consumption
1.8m3/h
Gun body (high voltage generator in gun body)
Input voltage
0~12V
Power frequency
10KHZ
Output voltage
0~100KV
Maximum output curren
0.15Ma
Equipment size
Long
450mm
Width
560mm
Height
960mm
Weight
35Kg

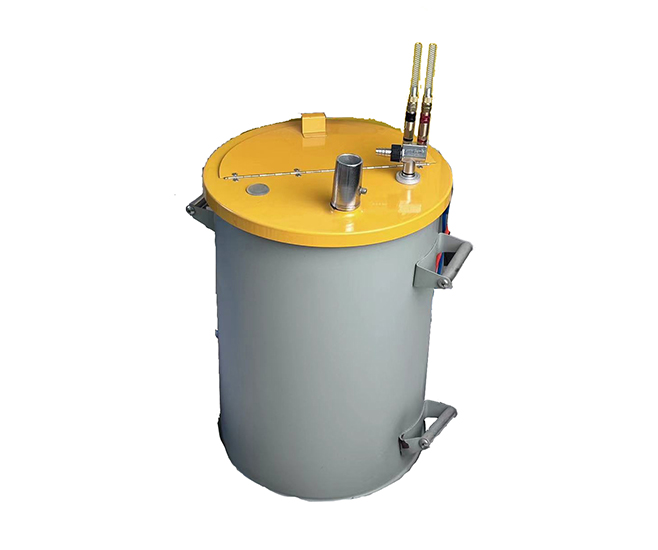

Powder cylinder specification
φ350×500mm
Bulk density
~50L(~25kg)
