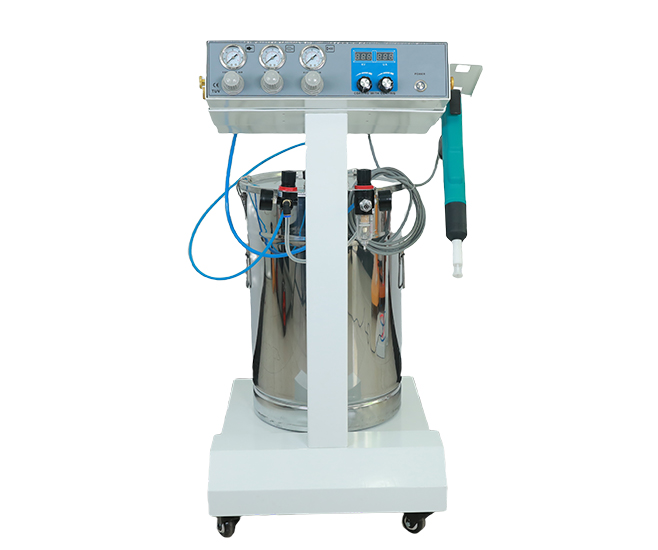

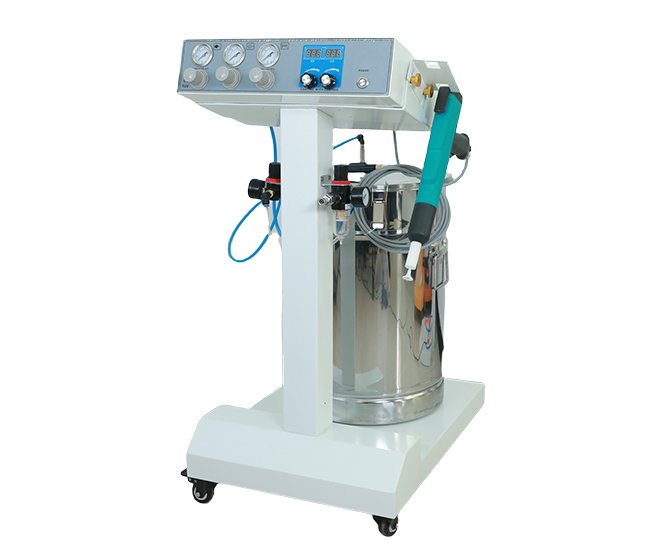

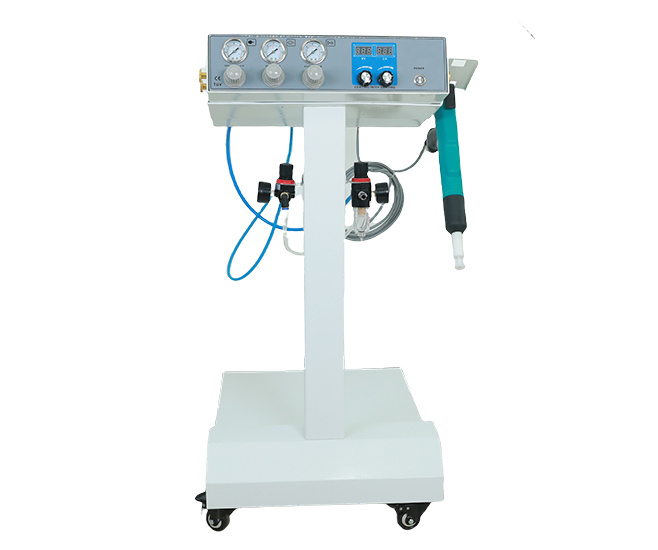

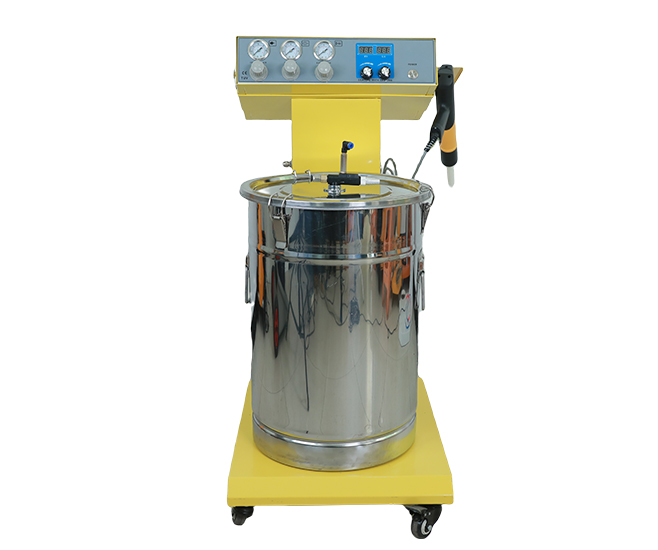

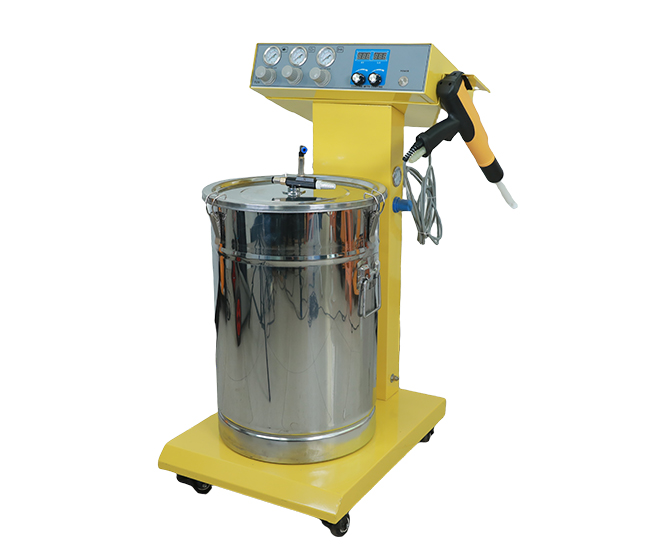

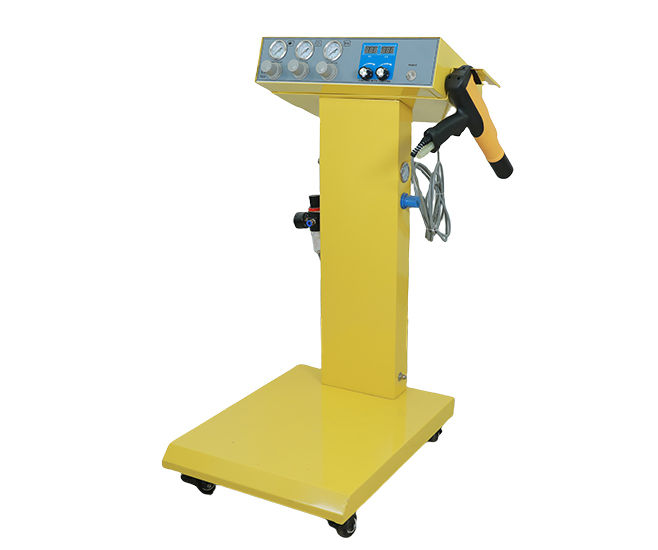

HXC-600A Electrostatic HXC-600A Spot Goods Coating Equipment metal Powder Spraying Machine With Painting Gun

Electrostatic HXC-600A Spot Goods Coating Equipment metal Powder Spraying Machine With Painting Gun

Characteristic

1.Detachable voltage multiplier adjacent to nozzle, low voltage loss.

2.Novel and unique two-way central gas, continuously cleaning the central electrode, the discharge effect is excellent, the powder rate is high.

3.Voltage, current LED display (digital display), easy to read.

4.Intuitive barometer display, operation is extremely convenient.

5.Especially light and reasonable gun body structure (gun weight 570), compact and beautiful, extremely modern sense.

6.A variety of nozzles can be selected, the size of the horn nozzle is the ideal choice of large-plane workpiece powder injection.

7.Stainless steel powder barrel luxury steam pie, clean, convenient and fast.

Download specification

Parameter

Circuit (control unit)
Input voltage
AC 220V
Frequency
50HZ
Input power
30W
Output curren
Max0.9A
Valve-controlled voltage
DC24V
Protective level dynamic
IP54
Gas path
Input pressure
6~8KG
Maximum moisture content in compressed air
1.3g/m3
Maximum oil content in compressed air
0.1ppm
Compressed air consumption
1.8m3/h
Gun body (gun body built-in high voltage generator)
Input voltage
0~12V
Power frequency
10KHZ
Output voltage
0~100KV
Maximum output curren
0.15Ma
Equipment size
Long
450mm
Width
560mm
Height
960mm
Weight
35Kg
Powder cylinder specification
φ350×500mm
Bulk density
~50L(~25kg)
